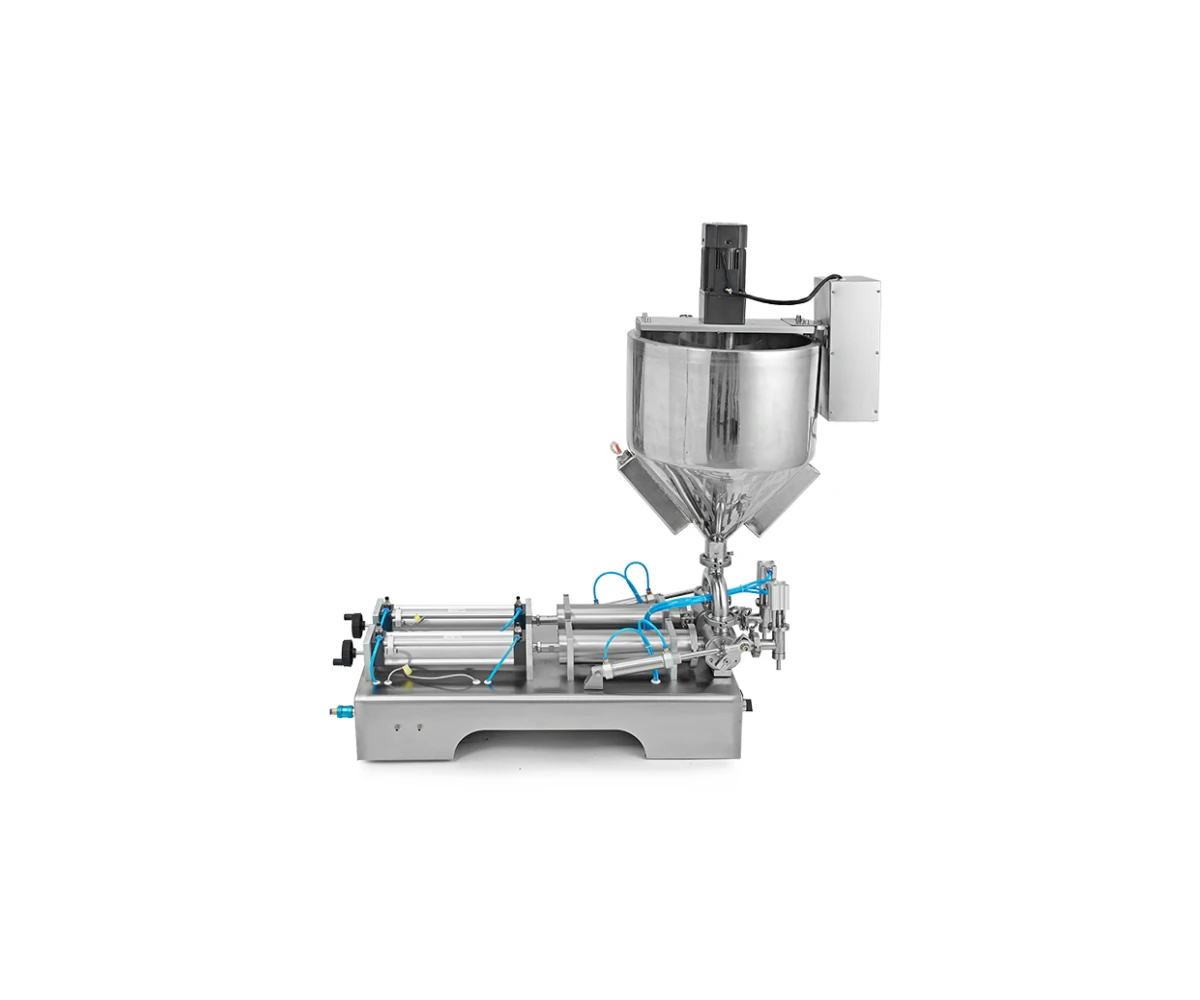

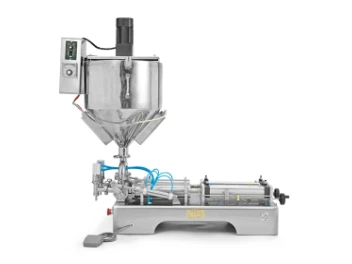

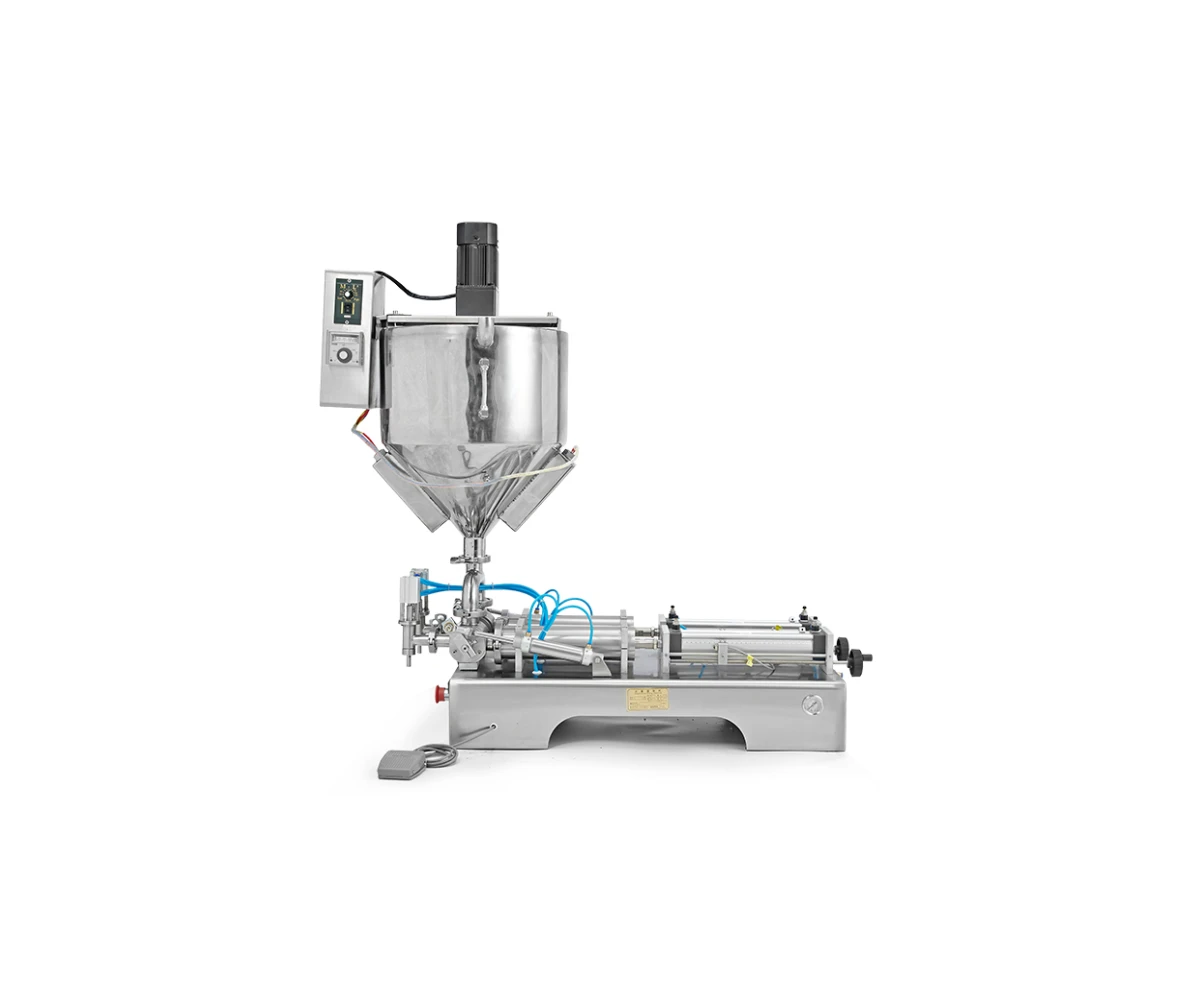

The semi-automatic single-head filling machine for thick substances is an advanced device designed for accurate portioning of high-viscosity products such as pastes, mousses, creams, and other semi-liquid masses. This solution is ideal for manufacturing plants, small production facilities, and workshops where product consistency and repeatable dosing are essential.
The machine enables fast, clean, and precise filling of bottles, cups, jars, and various types of containers, significantly improving the packaging and filling process.
The filling machine is equipped with a hopper featuring a water jacket system, allowing gentle and non-invasive heating of the dispensed product. The double-wall construction filled with water ensures even heat distribution while minimizing the risk of overheating or burning the substance.
An integrated agitator prevents product separation during operation, ensuring uniform consistency throughout the entire filling cycle. Both the heating temperature and the mixer speed can be adjusted smoothly and independently, allowing precise parameter control depending on the product characteristics.
The filler offers smooth adjustment of the filling volume from 30 to 500 ml, making it ideal for precise filling of small containers.
The machine can operate in:
This setup provides the operator with full control over the dosing process and ensures high operational comfort.
The use of interchangeable filling nozzles allows the machine to handle containers with both narrow and wide neck openings. This ensures flexibility in production depending on the type of product and packaging used.
For proper operation, the machine requires connection to an air compressor with the following minimum specifications:
The compressor is not included, allowing integration with existing technical infrastructure.
The dispenser is made entirely of stainless steel, ensuring:
This makes the machine suitable for food processing applications as well as other industries where cleanliness and product safety are critical.
The recommended maximum temperature of the dispensed product is 70°C, enabling safe processing of substances that require heating to achieve the desired consistency.
| Parameter | Specification |
|---|---|
| Filling Head | 2 pcs |
| Filling Range | 30–500 ml |
| Output | 10–40 pcs/min |
| Filling Method | Piston |
| Filling Nozzle | Ø inner/outer 8/10 mm (optional: 3/4, 4/6, 8/10, 10/12, 12/14, 14/16 mm) |
| Hopper Capacity | 30 L |
| Air Pressure Required | 0.8 Mpa |
| Power Supply | 230 V |
| Total Power | 2150 W |
| Max Heating Temperature | 0–300°C |
| Dimensions (L×W×H) | 110 × 49 × 102 cm |
| Weight | 38kg |
There are no reviews for this product yet... Be the first to write one!
Manufacturer:
Prima-Tech S.C.
ul. Górna 2a
42-262 Kolonia Poczesna
Tel. +48 34 328 51 48
email: primatech@op.pl
Country of origin: China
