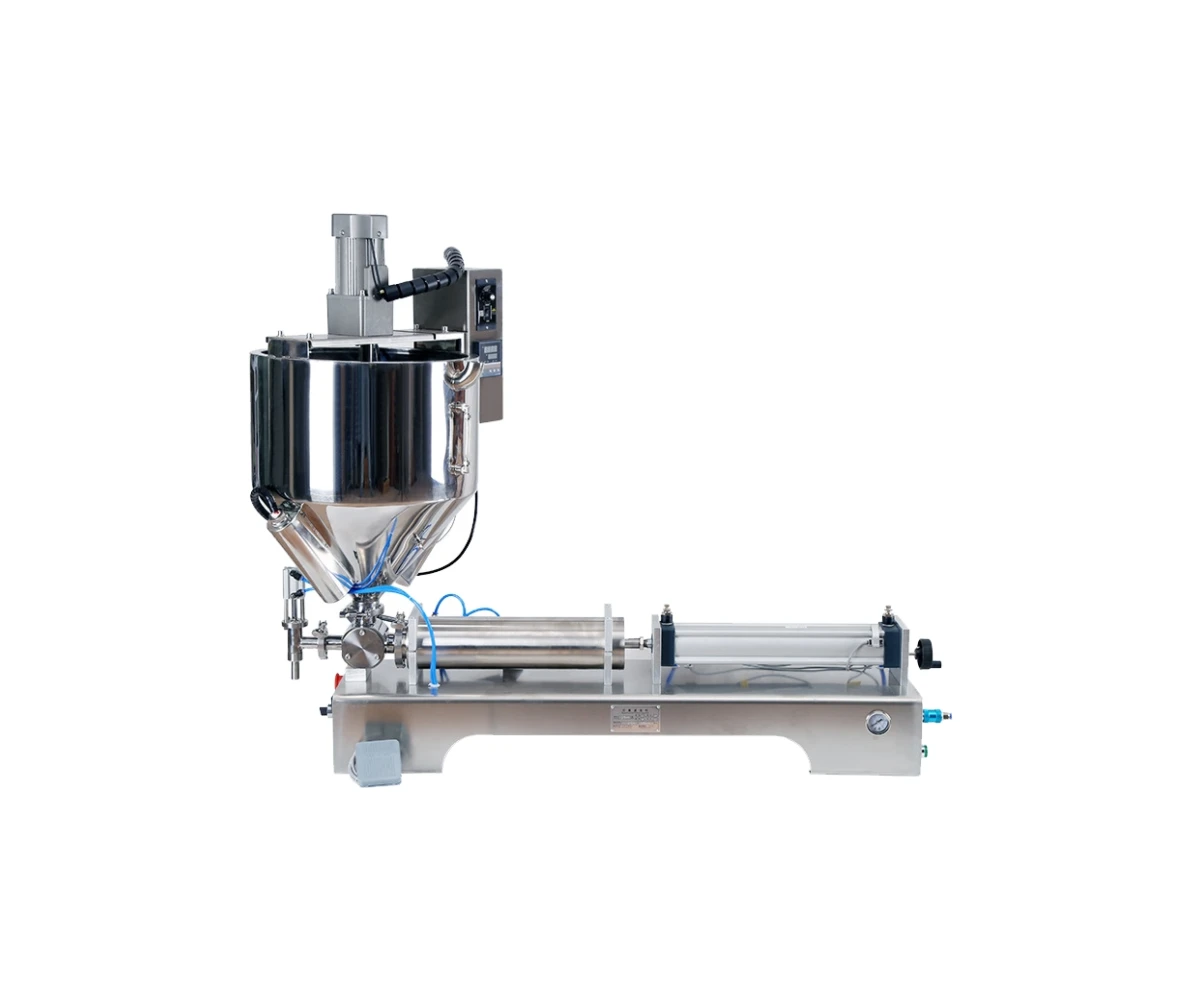

The semi-automatic filling machine for thick substances with water jacket is a specialized single-head heated viscous product filler designed for accurate dosing of high-viscosity materials such as pastes, mousses, creams, and other semi-liquid masses.
This solution is ideal for production facilities, craft manufacturers, and any environment where maintaining stable consistency and repeatable filling accuracy is essential.
The machine ensures clean, fast, and precise filling of bottles, cups, jars, and various types of containers, significantly improving the packaging and portioning process.
The filling machine is equipped with a water-jacketed hopper, allowing gentle and uniform heating of the product. The double-wall design filled with water ensures even heat distribution without the risk of burning or overheating the substance.
An integrated agitator (mixer) prevents product separation during operation, maintaining a consistent and homogeneous texture throughout the entire filling process.
Both the heating temperature and the agitator speed are smoothly adjustable and independently controlled, enabling precise parameter settings tailored to specific product requirements.
The semi-automatic heated filling machine allows smooth volume adjustment from 5 ml to 50 ml, making it an ideal solution for accurate filling of small containers and sample-size packaging.
The machine can operate in:
This setup provides full control over the dosing process while ensuring operator comfort and precision.
For proper operation, the machine must be connected to an air compressor with the following specifications:
The compressor is not included, allowing you to utilize your existing technical equipment.
The dispenser is entirely made of stainless steel, ensuring:
This construction makes the machine ideal for the food industry and other applications where cleanliness and product safety are critical.
The recommended maximum product temperature is 70°C, enabling safe operation with substances that require heating to achieve the desired consistency.
The semi-automatic filling machine for thick substances with water jacket and agitator is a functional and reliable solution that enhances dosing quality and ensures a professional production standard.
| Parameter | Specification |
|---|---|
| Filling Head | 1 pcs |
| Filling Range | 5–50 ml |
| Output | 5–25 pcs/min |
| Filling Method | Piston |
| Filling Nozzle | Ø inner/outer 8/10 mm (optional: 3/4, 4/6, 8/10, 10/12, 12/14, 14/16 mm) |
| Hopper Capacity | 30 L |
| Air Pressure Required | 0.8 Mpa |
| Power Supply | 230 V |
| Total Power | 2140 W |
| Max Heating Temperature | 0–300°C |
| Dimensions (L×W×H) | 110 × 49 × 102 cm |
| Weight | 38kg |
