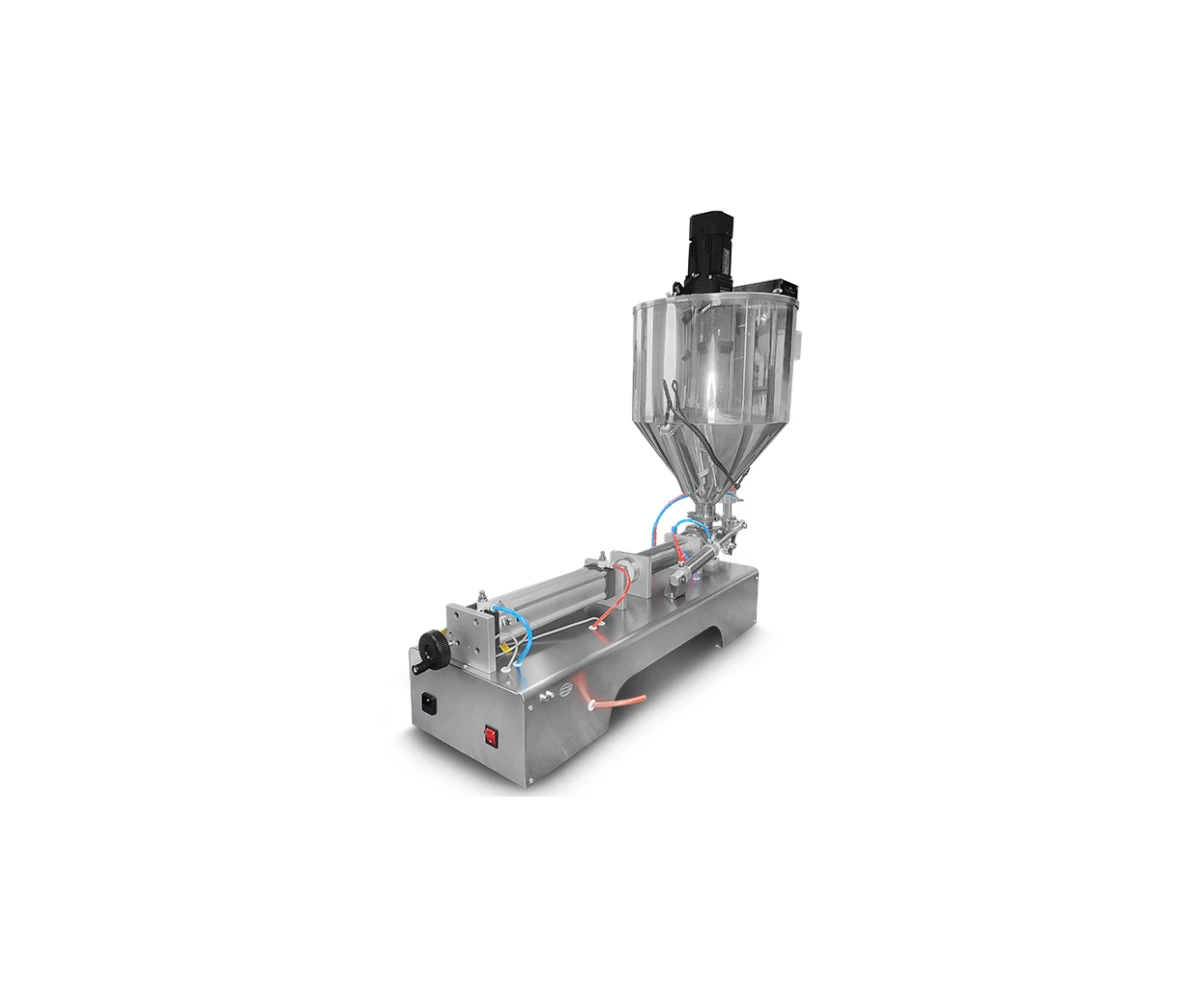

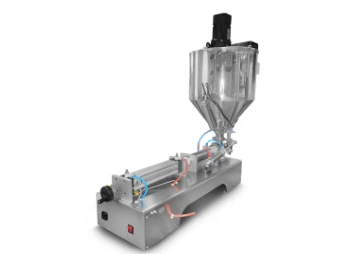

The semi-automatic double head filling machine for thick substances with water jacket is an advanced dual nozzle heated viscous product filler designed for accurate portioning of high-viscosity materials such as pastes, mousses, creams, and other semi-liquid masses.
This solution is ideal for production plants, craft manufacturers, and any facility where stable product consistency and repeatable dosing accuracy are essential.
The machine enables fast, clean, and precise filling of bottles, cups, jars, and various containers, significantly improving the packaging and portioning process while increasing production efficiency.

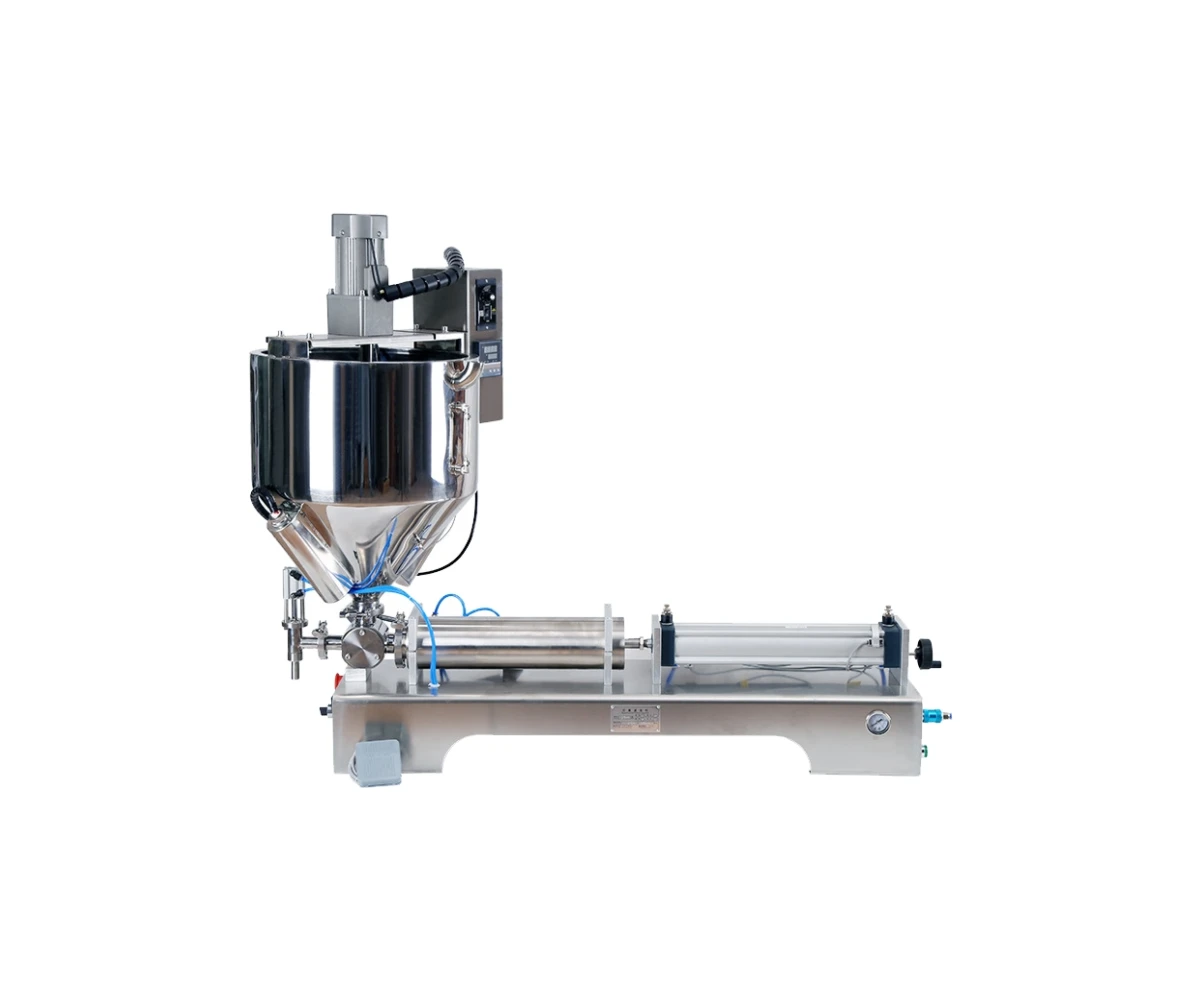

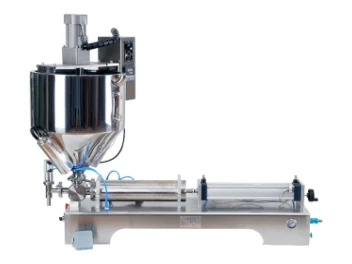

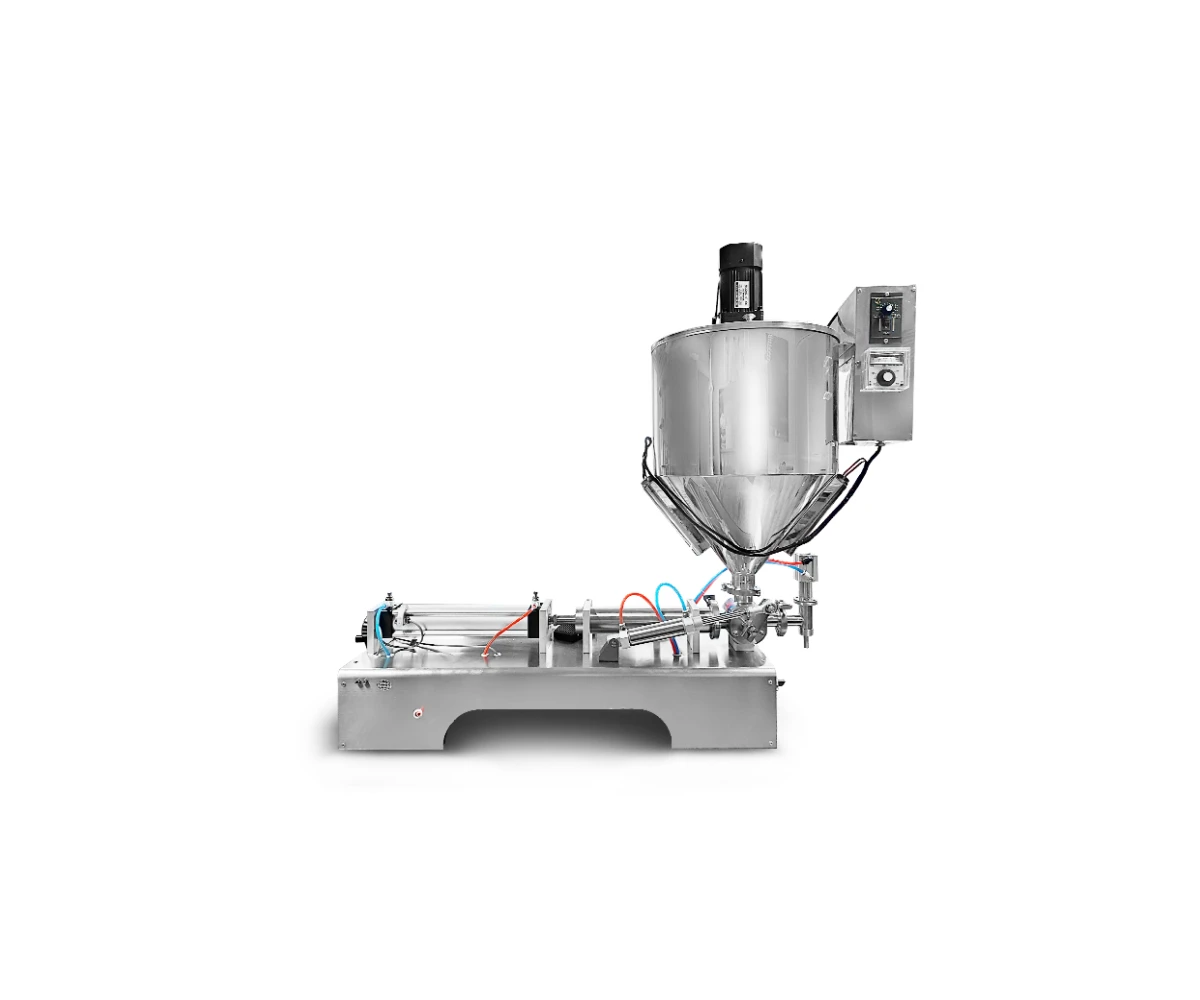

The filling machine is equipped with a water-jacketed hopper, allowing gentle and non-invasive heating of the dispensed product. The double-wall design filled with water ensures even heat distribution, minimizing the risk of overheating or burning the substance.

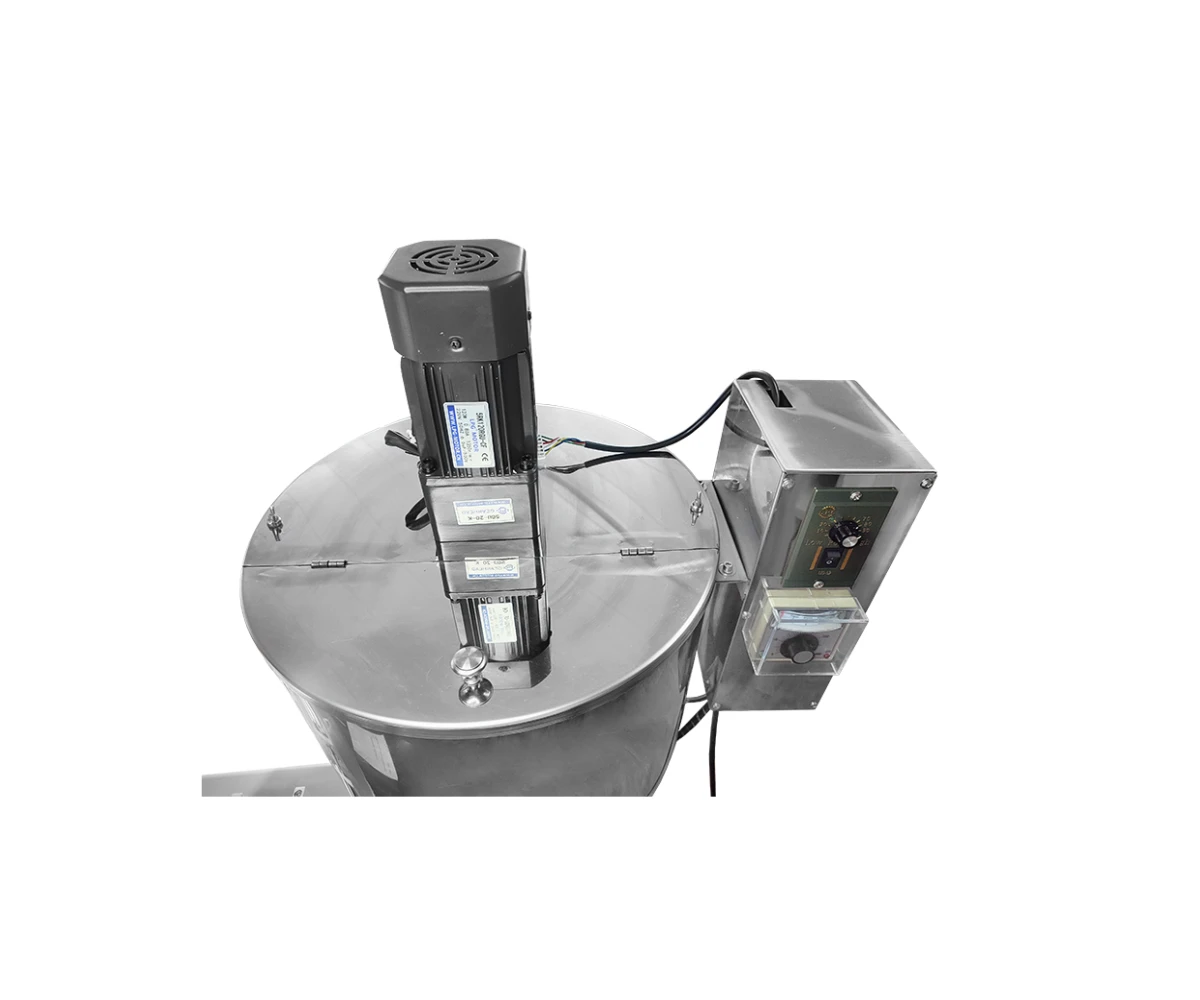

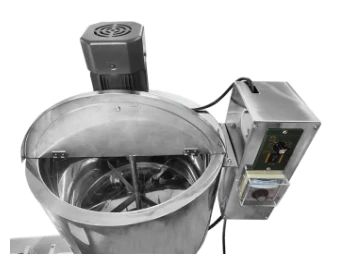

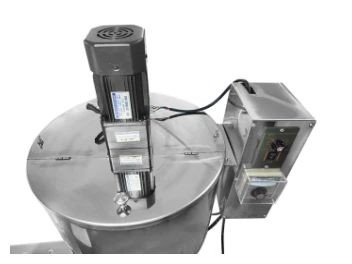

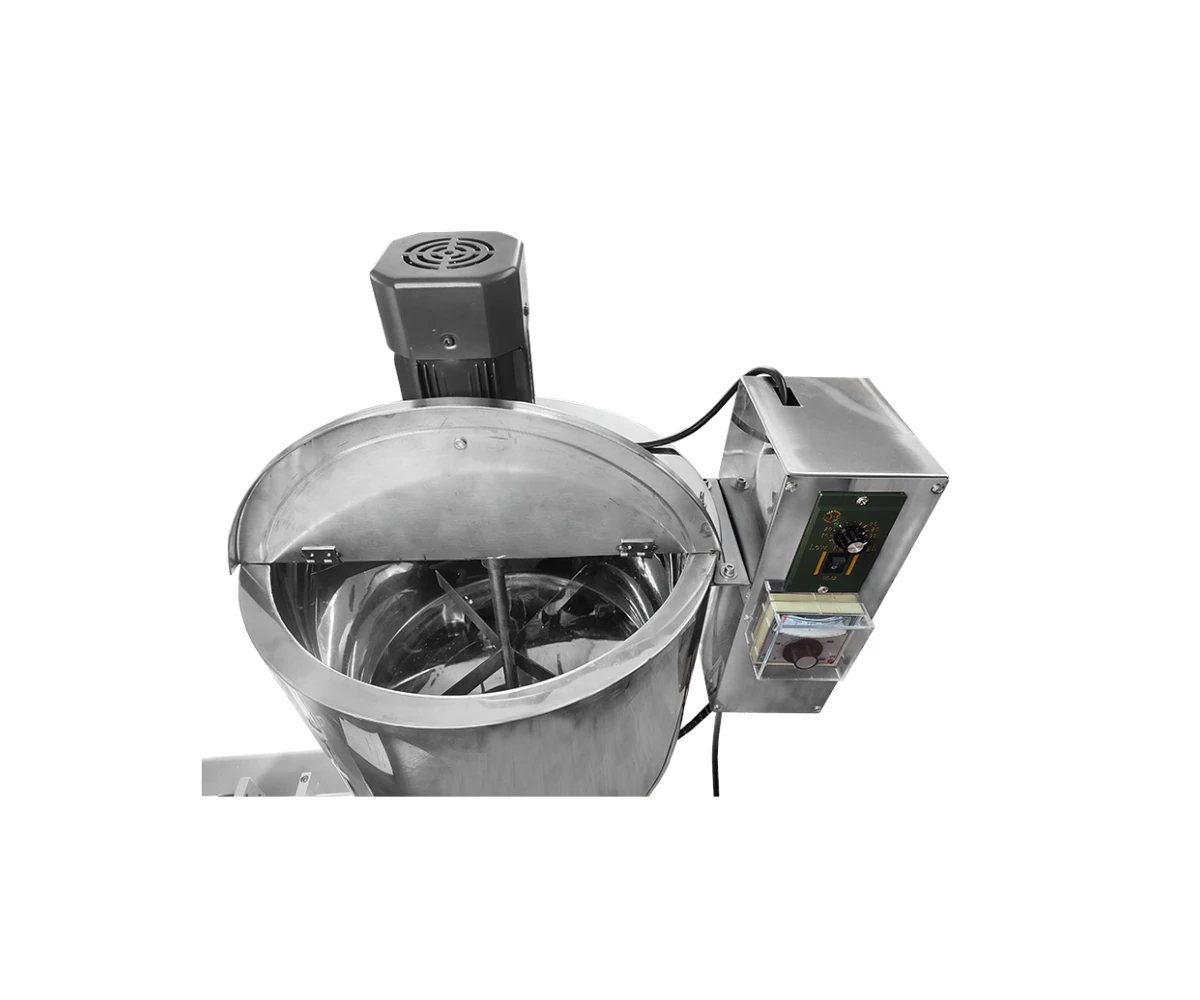

An integrated agitator (mixer) prevents product separation during operation, maintaining a uniform and consistent texture throughout the entire filling cycle.
Both the heating temperature and the agitator speed are smoothly adjustable and independently controlled, allowing precise customization of operating parameters according to specific product requirements.
The filling machine offers smooth volume adjustment from 30 ml to 500 ml, making it an ideal solution for precise filling of small and medium-sized containers.
The machine can operate in:

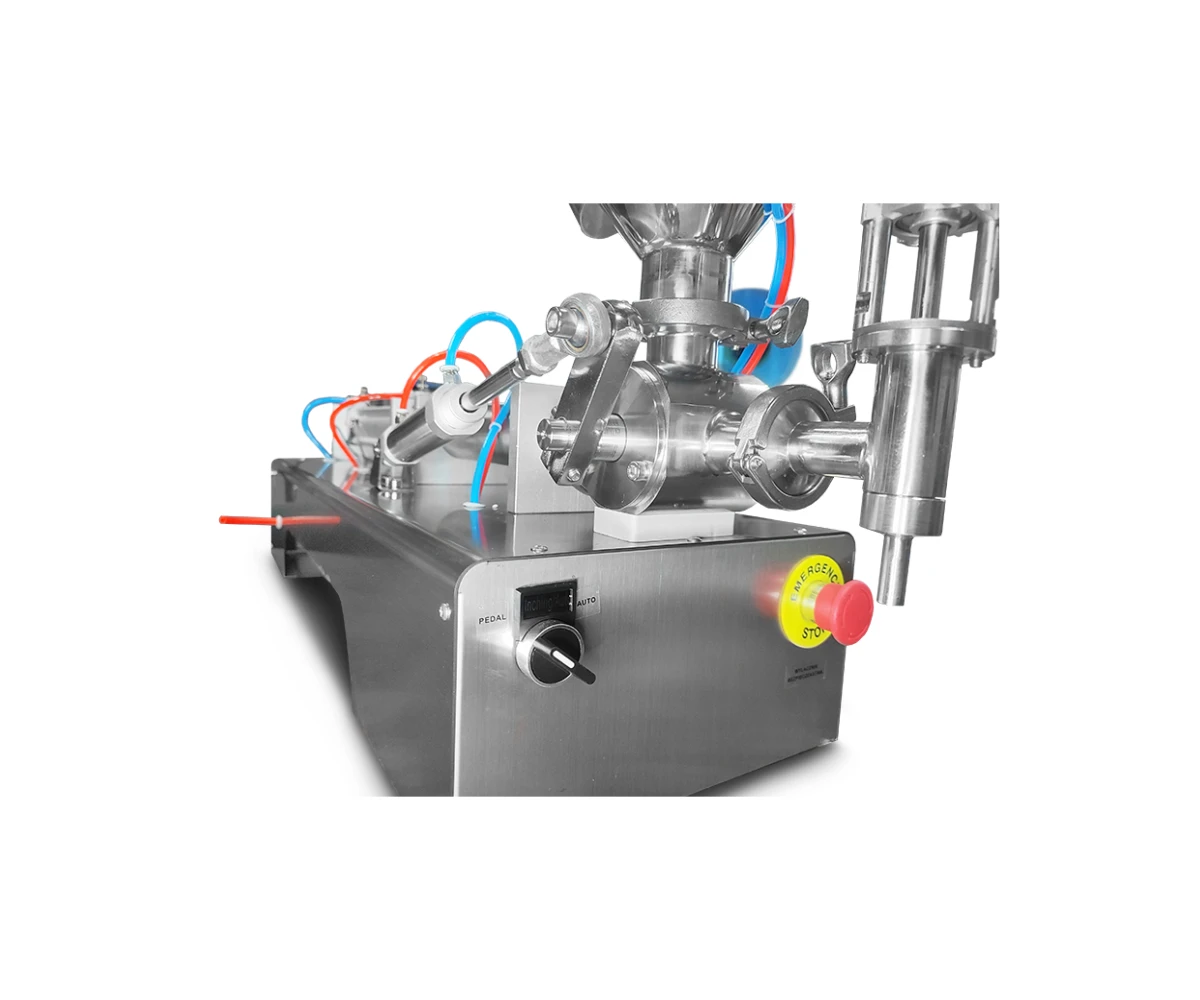

This configuration provides full operator control over the dosing process while ensuring high working comfort.

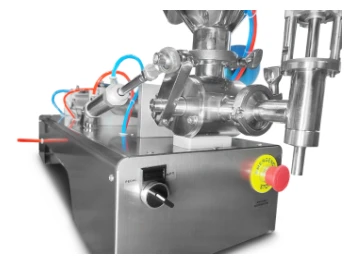

The use of interchangeable filling nozzles allows operation with both very narrow and wide container necks. This enables flexible application depending on the type of product and packaging format.
As a result, the heated viscous filling machine can be easily adapted to different production needs without additional equipment.
For proper operation, the machine must be connected to an air compressor with the following specifications:
The compressor is not included, allowing you to use your existing technical infrastructure.
The dispenser is entirely made of stainless steel, ensuring:
This construction makes the machine ideal for the food industry and any environment where cleanliness and product safety are critical.
The recommended maximum product temperature is 70°C, enabling safe operation with substances that require heating to achieve proper consistency.
The semi-automatic double head filling machine for thick substances with water jacket and agitator is a reliable and functional solution that enhances dosing precision and ensures a professional production standard.
| Parameter | Specification |
|---|---|
| Filling Head | 1 pcs |
| Filling Range | 30–500 ml |
| Output | 5–25 pcs/min |

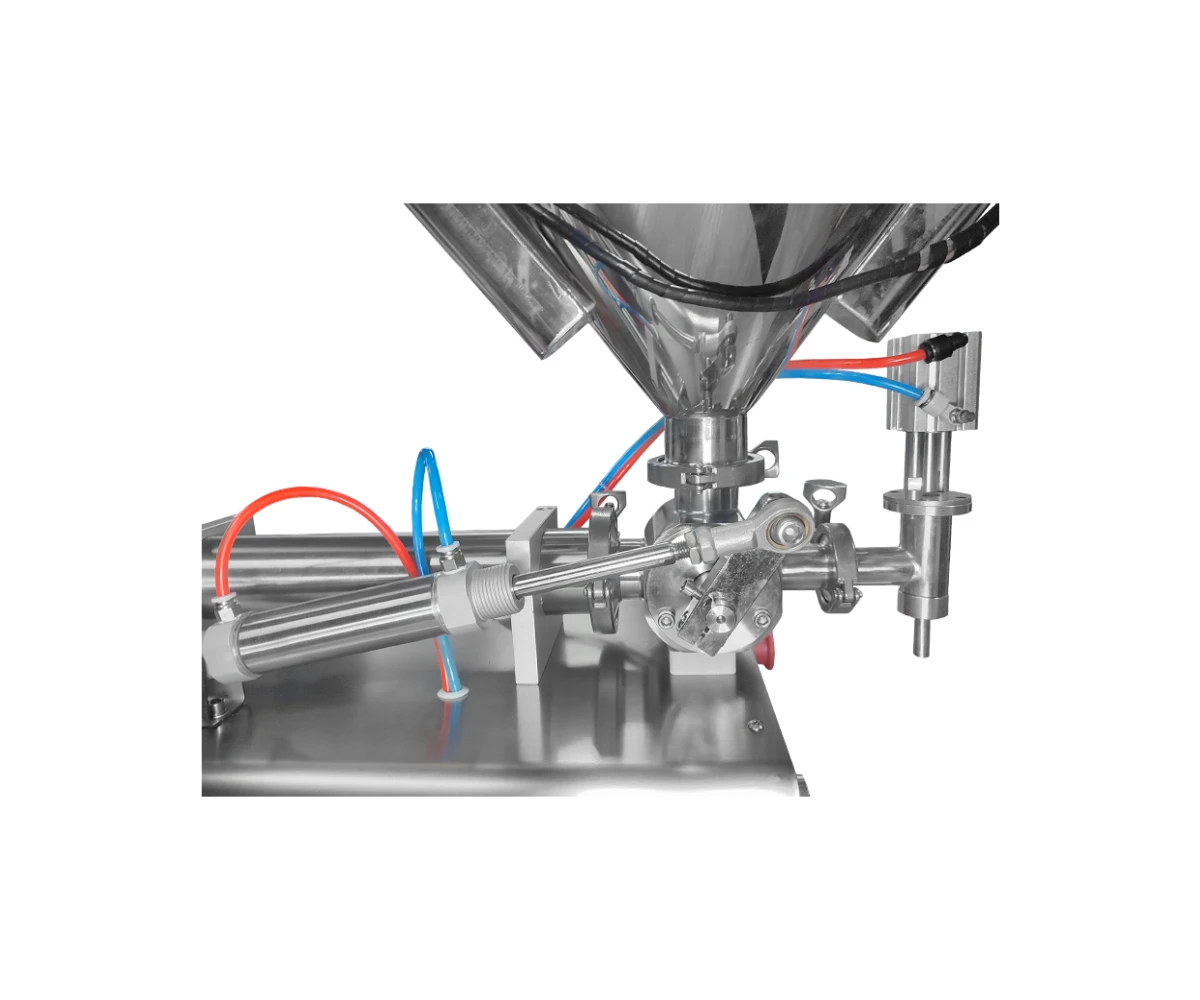

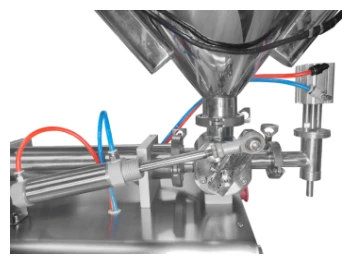

| Filling Method | Piston |
| Filling Nozzle | Ø inner/outer 8/10 mm (optional: 3/4, 4/6, 8/10, 10/12, 12/14, 14/16 mm) |
| Hopper Capacity | 30 L |
| Air Pressure Required | 0.8 Mpa |
| Power Supply | 230 V |
| Total Power | 2140 W |
| Max Heating Temperature | 0–300°C |
| Dimensions (L×W×H) | 110 × 49 × 102 cm |
| Weight | 38kg |
