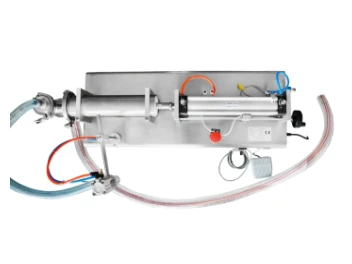

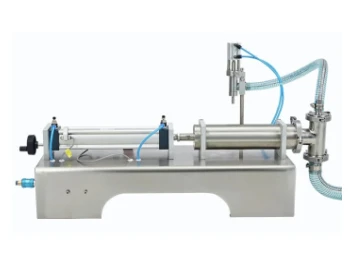

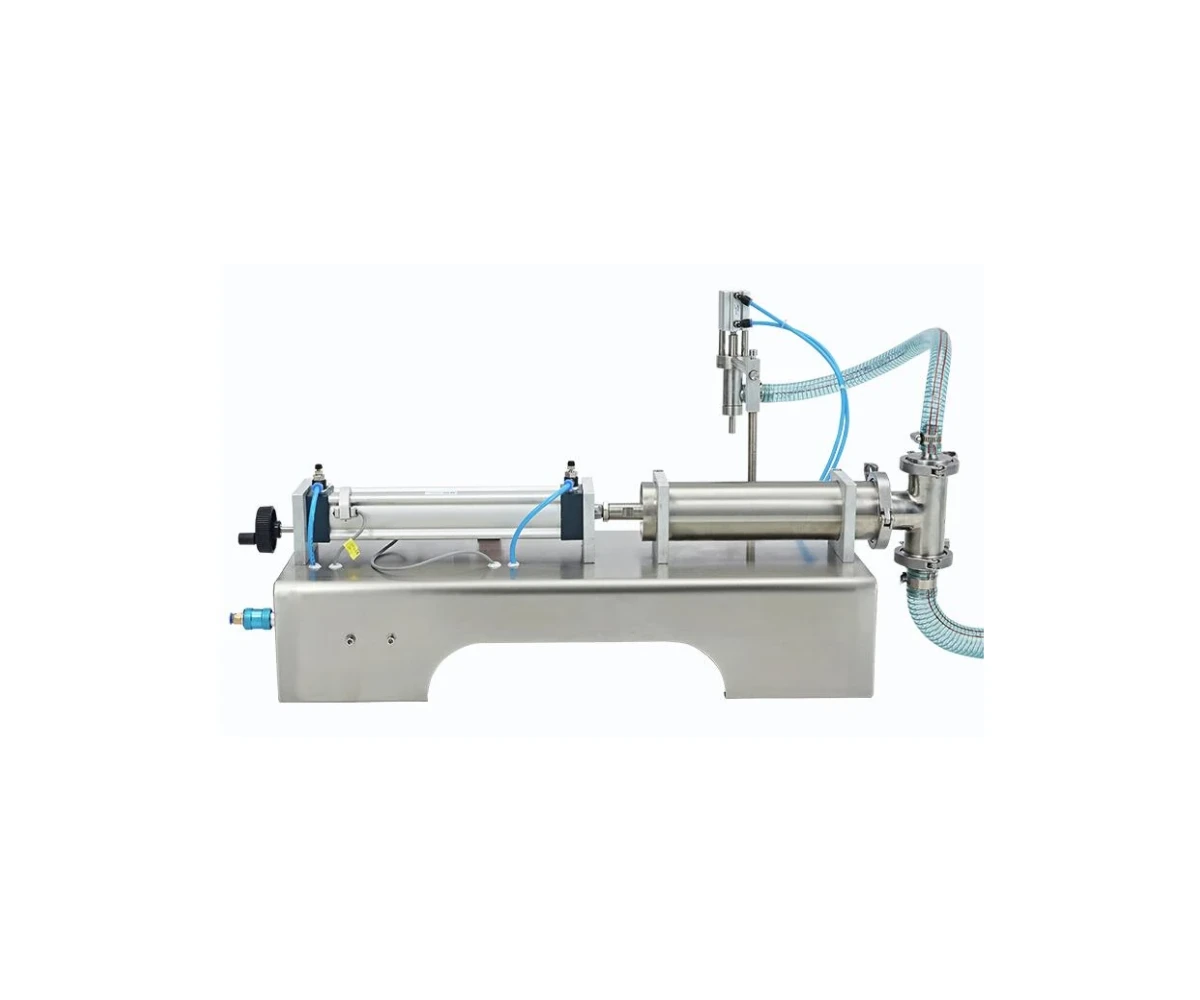

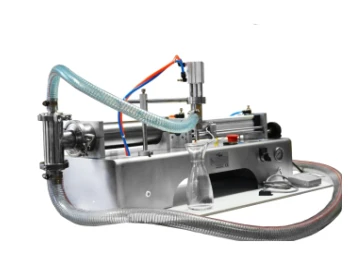

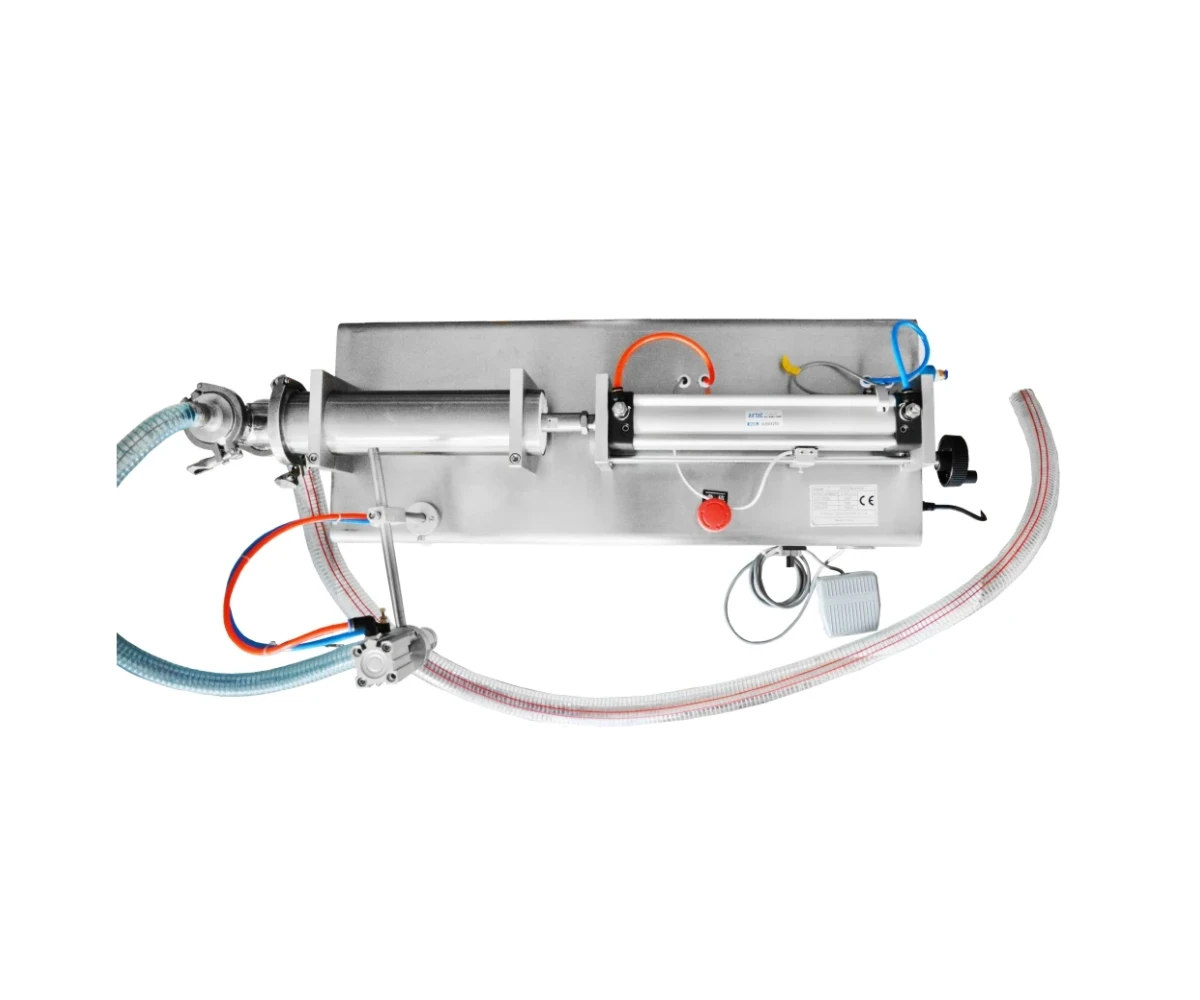

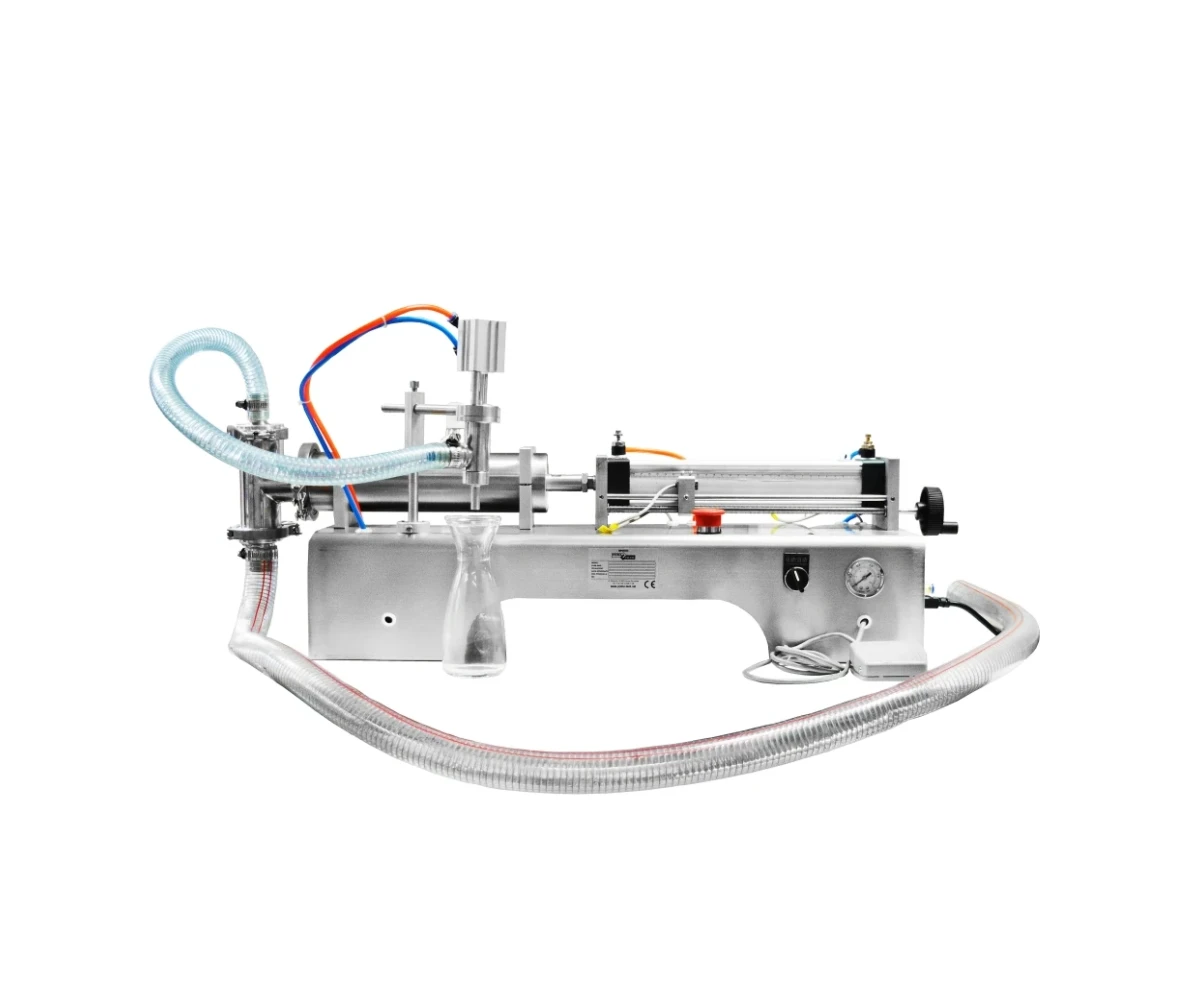

The semi-automatic liquid filling machine (liquid dispenser) is a reliable solution designed for accurate dosing of liquid and semi-liquid products with water-like viscosity. It is an ideal choice for small and medium-sized production facilities, farms, craft manufacturers, and companies involved in filling oils, juices, beverages, and other liquid food products.
This liquid filler enables fast, repeatable, and clean bottle filling, significantly improving the packaging process and increasing overall production efficiency. It is suitable for filling bottles, cups, and various types of containers with consistent precision.
Thanks to interchangeable filling nozzles, the machine can handle even very narrow bottle necks – the smallest nozzle has a diameter of just 4 mm, making it perfect for small openings (down to 1 cm).
The filling machine has been designed for a wide range of applications. It is perfectly suited for dosing products such as:
Thanks to its compatibility with different container types, this semi-automatic bottle filler is highly versatile and easy to adapt to individual production requirements.

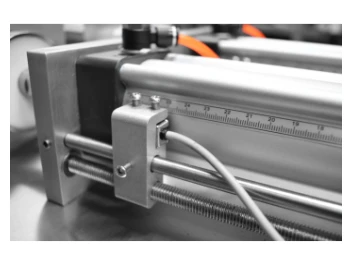

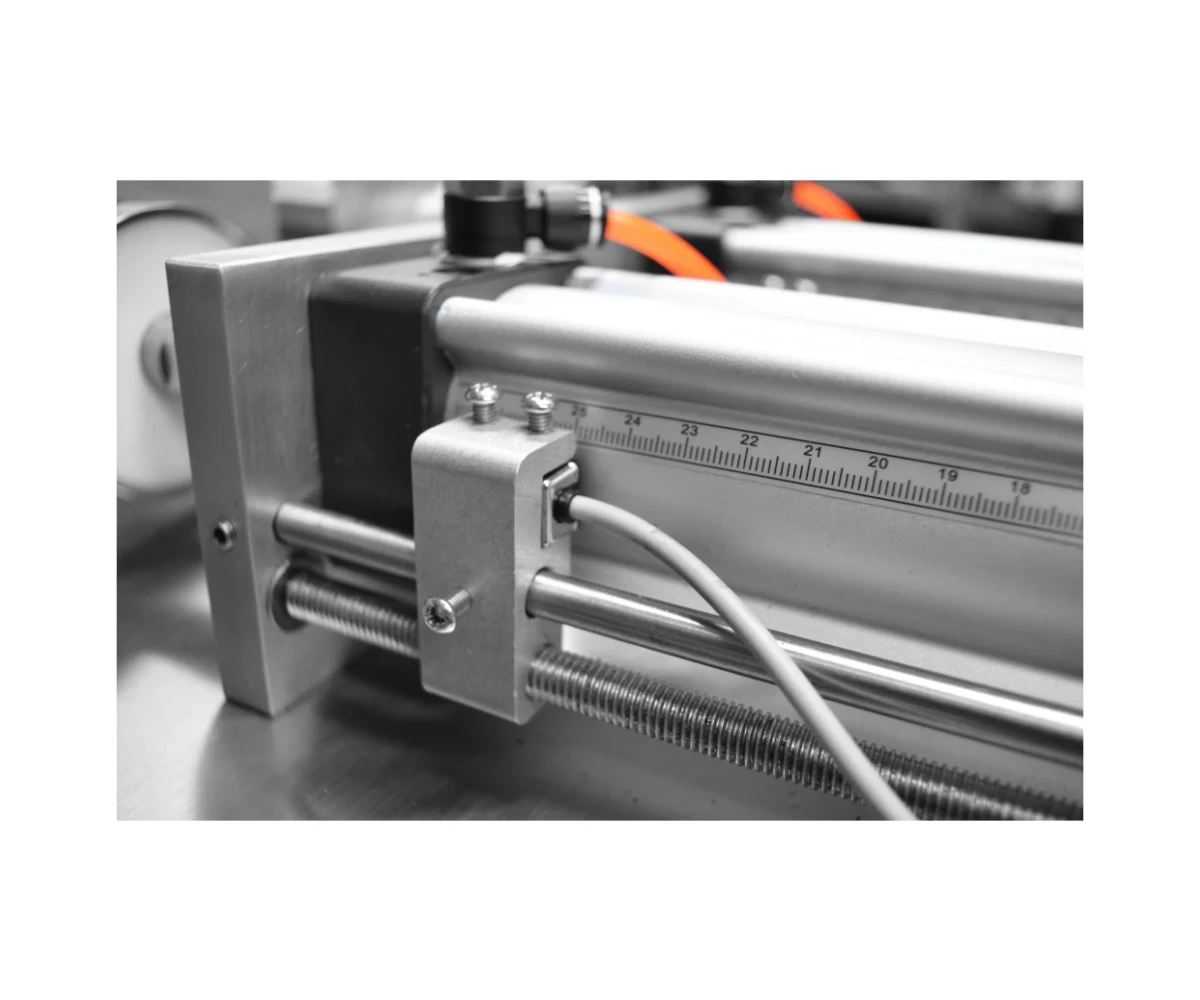

The semi-automatic filling machine features smooth volume adjustment from 100 ml to 1000 ml, allowing precise matching of the filling volume to specific packaging needs. This ensures high repeatability and minimizes product loss.
The machine can operate in:
This flexibility provides full control over the filling process and enhances operational efficiency.

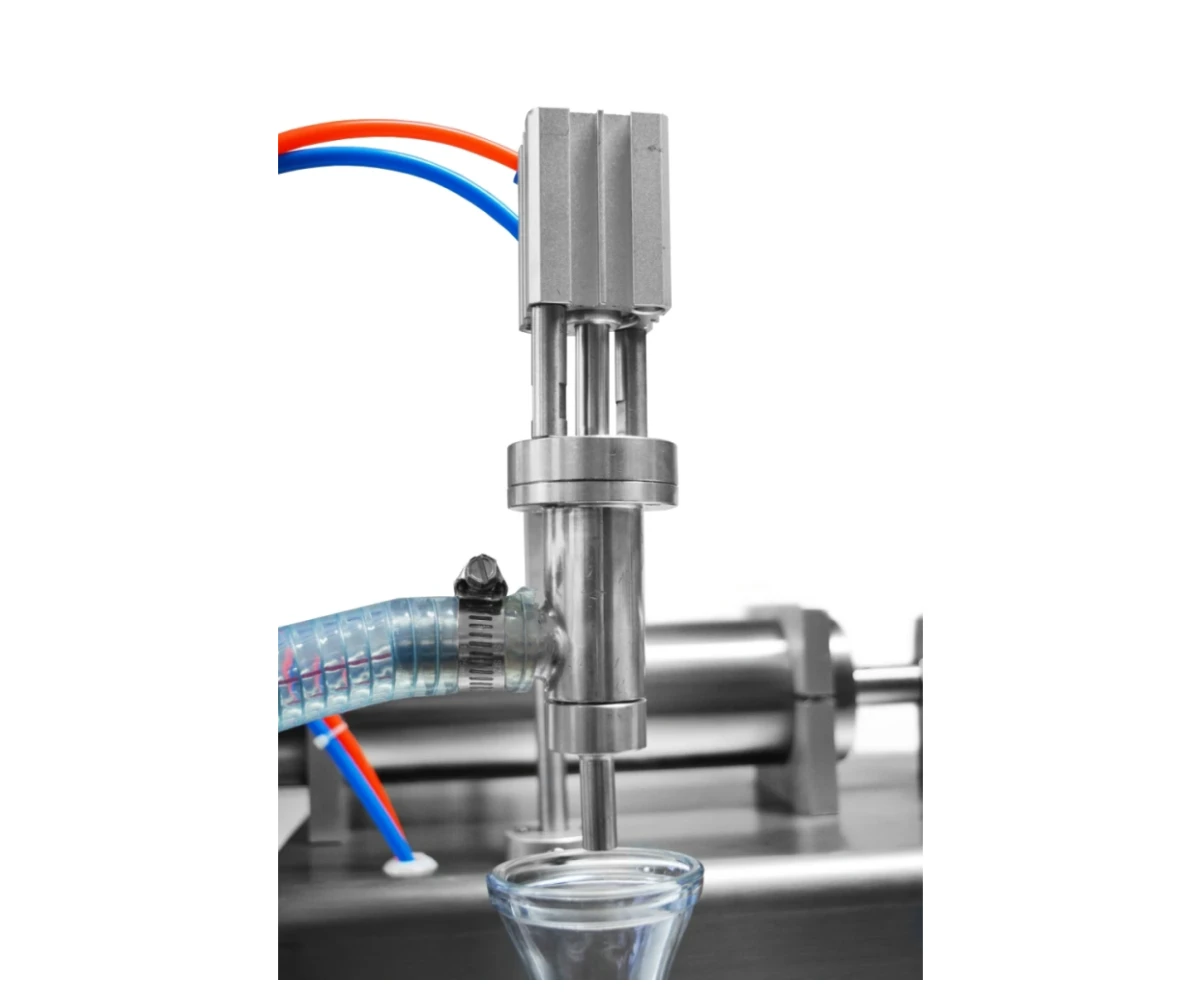

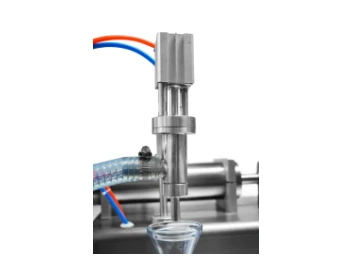

The liquid filling machine is equipped with interchangeable filling nozzles, enabling operation even with very narrow bottle necks. This makes it suitable for both standard containers and bottles with small inlet diameters.
This practical feature increases the machine’s versatility and eliminates the need for additional adapters.
For proper operation, the filling machine requires connection to an air compressor with the following parameters:
The compressor is not included, allowing you to use existing equipment in your facility.

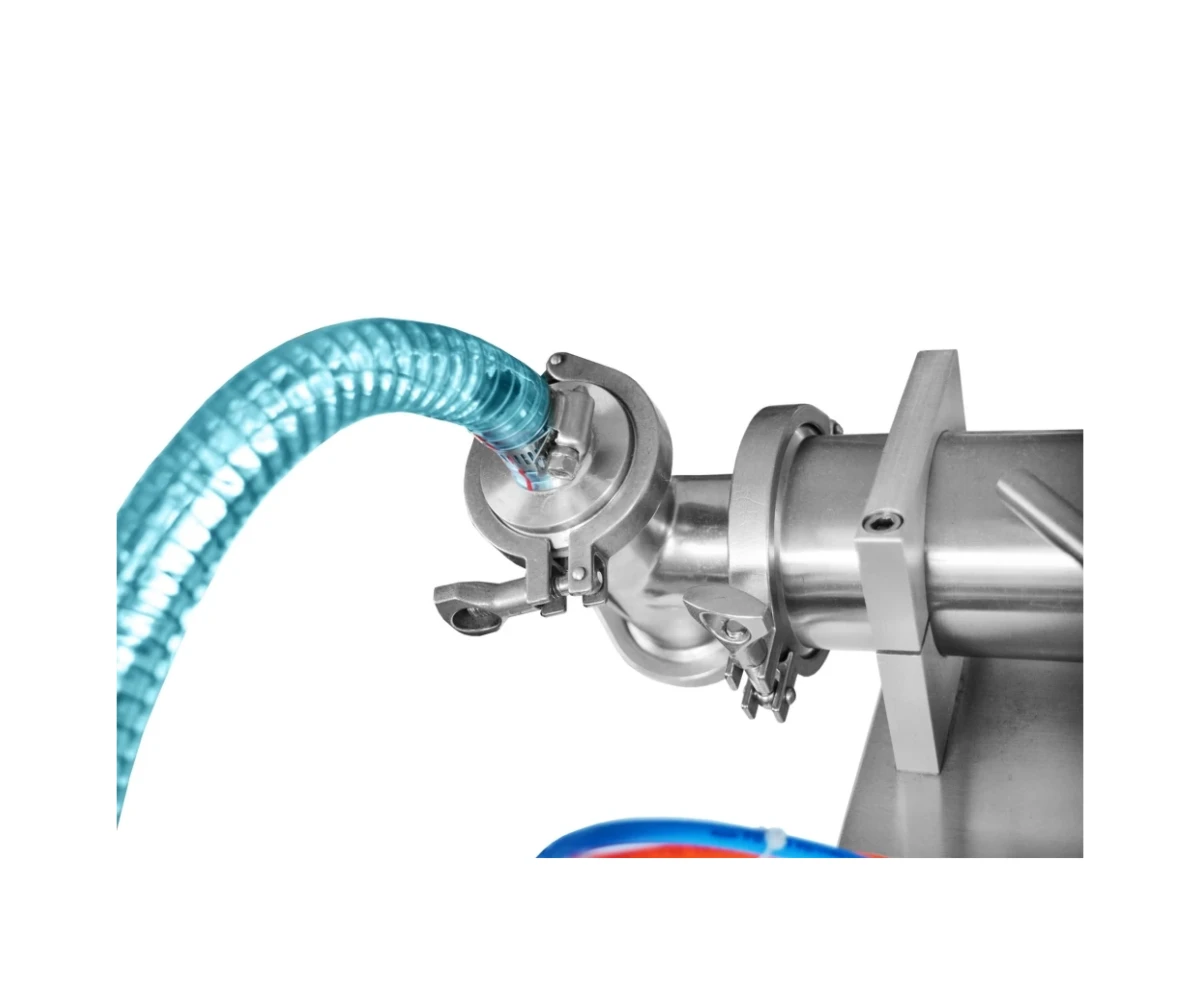

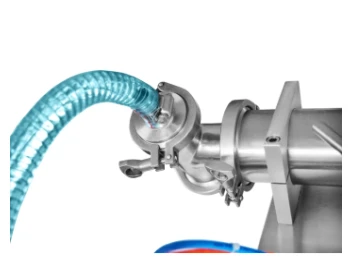

A flexible suction hose enables drawing liquid directly from an external tank, reducing downtime and accelerating the filling process.
The liquid dispenser is entirely made of stainless steel, ensuring:
This construction makes the semi-automatic liquid filler ideal for the food industry and any production environment where hygiene and product safety are essential.
The machine allows filling of liquids with temperatures up to 70°C, making it suitable for warm or freshly processed products.
The semi-automatic liquid filling machine is a practical, durable, and cost-effective solution that optimizes the bottling process and enhances the professional standard of your production line.
| Parameter | Specification |
|---|---|
| Filling Head | 1 pcs |
| Dosing Range | 100–1000 ml |
| Filling Speed | 10–25 pcs/min |
| Filling Method | Piston type |
| Filling Nozzle | ⌀ inner/outer 8/10 mm (optional: 3/4, 4/6, 8/10, 10/12, 12/14, 14/16 mm) |
| Air Pressure Requirement | 0.8 MPa |
| Accuracy | ±1% – ±2% |
| Power Supply | 230 V |
| Power Consumption | 10 W |
| Dimensions (L × W × H) | 92 × 30 × 35 cm |
| Weight | 26 kg |
There are no reviews for this product yet... Be the first to write one!
Manufacturer:
Prima-Tech S.C.
ul. Górna 2a
42-262 Kolonia Poczesna
Tel. +48 34 328 51 48
email: primatech@op.pl
Country of origin: China
